Name: Electric vertical injection molding machine
Rating: 5 (99 reviews)

Electric vertical injection molding machine

Introduction:

Electric vertical injection molding machine is an injection molding machine that uses electric drive technology. Its injection unit and clamping unit are located on a vertical axis, and the mold opens and closes in the vertical direction. This type of equipment is usually used for high-precision and high-efficiency plastic product production, especially for applications such as insert injection molding and precision parts molding.

Purging Injection Molding Machine: The Complete Guide to Clean Changeovers 2026-Aug-21
Purging an injection molding machine is the difference between a 25-minute color change and a three-hour production loss. A properly executed purge pushes old resin, carbonized deposits, and pigment residue out of the barrel, screw, and nozzle so the next material starts clean. A rushed purge leaves contamination beh...
How Does an Injection Molding Machine Work? A Complete Guide to the Process 2026-Aug-14
How an Injection Molding Machine Works at a Glance An injection molding machine works by feeding plastic granules into a heated barrel, melting them into a viscous liquid, injecting the melt under high pressure into a closed mold, cooling it until the part solidifies, and then ejecting the finished piece. This cycle ...
Injection Molding Machine Cutaway: Vertical vs Horizontal Structure Guide 2026-Aug-07
Slice an injection molding machine down the middle, and the cutaway view shows exactly how polymer pellets become finished parts: where the screw melts and injects material, how the mold is held shut under tonnage, and how the part is ejected after cooling. For engineers, purchasing teams, and maintenance staff, that ...

Low energy consumption	The injection and storage systems are driven by high-performance servo motors, consuming energy only when needed. This is more energy-efficient than traditional hydraulic systems and significantly reduces energy consumption.
Ultra-quiet	The servo motor is extremely quiet and operates smoothly, providing a quieter and more comfortable working environment for the production workshop.
High precision	The efficient closed-loop control system can achieve extremely high repeatability, ensuring the consistency of product dimensions and greatly improving the product qualification rate.
Efficient production	Optional high-speed injection system with injection speed up to 500mm/s. Especially suitable for rapid prototyping of thin-walled products such as mobile phone connectors, shortening production cycle
Wide application	It can handle injection molding of parts ranging from 0.1g to 150g, with a clamping force ranging from 40T to 160T. It is particularly suitable for LCP connectors, precision connectors, and dust-free workshop production with strict cleanliness requirements.
High yield	Precise control and stable performance ensure product repeatability and consistency, improve production yield and reduce scrap rate.

Main application areas	Typical application scenarios

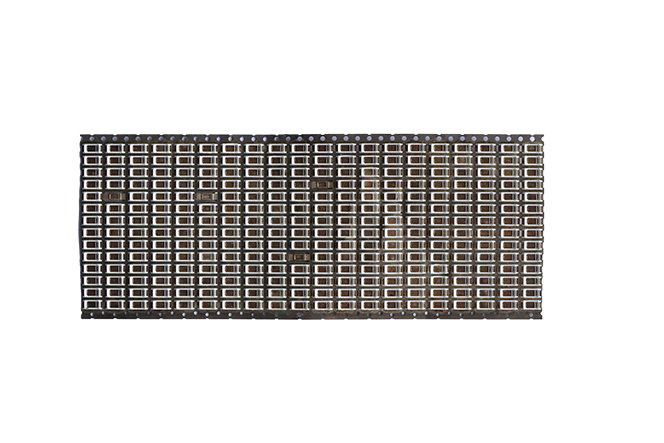

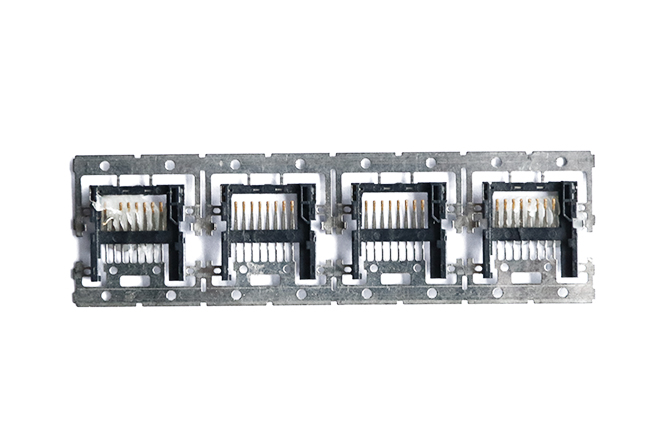

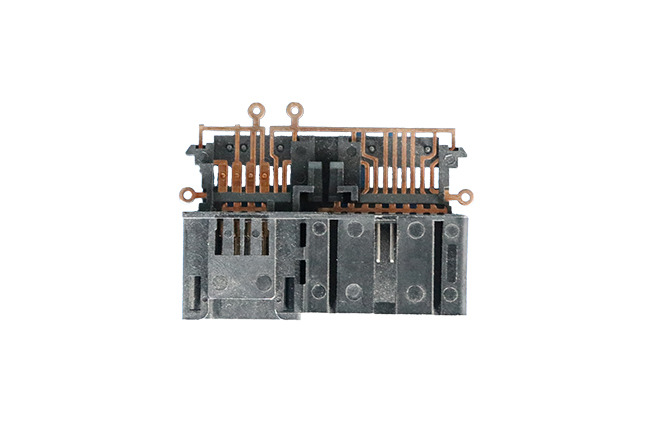

Electronics industry	Connectors, sensor housings, coil skeletons, and precision parts inside mobile phones/computers, etc., usually require metal or electronic components to be embedded in plastic parts.

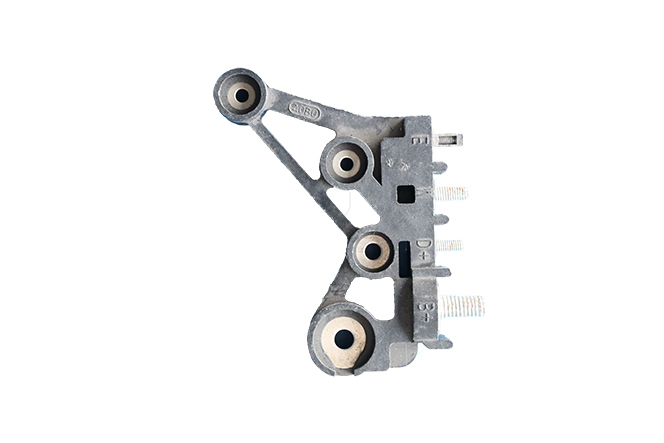

Automotive industry	Automotive connectors, wiring harness assemblies, sensor housings, in-car buttons, and other functional plastic parts that require inserts.
Medical equipment	Medical catheter connectors, infusion sets, syringes, surgical instrument handles and other high-precision, high-cleanliness products.

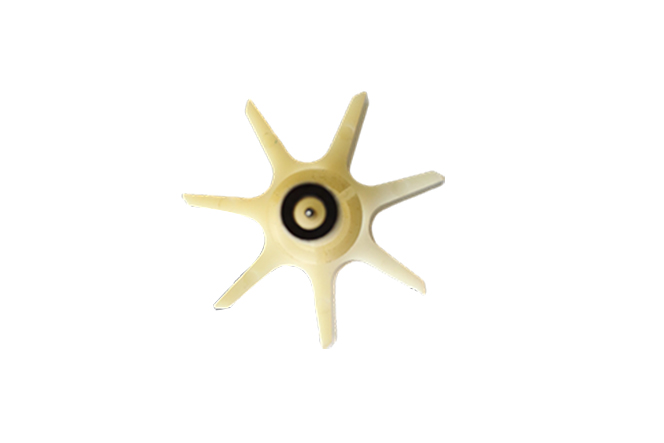

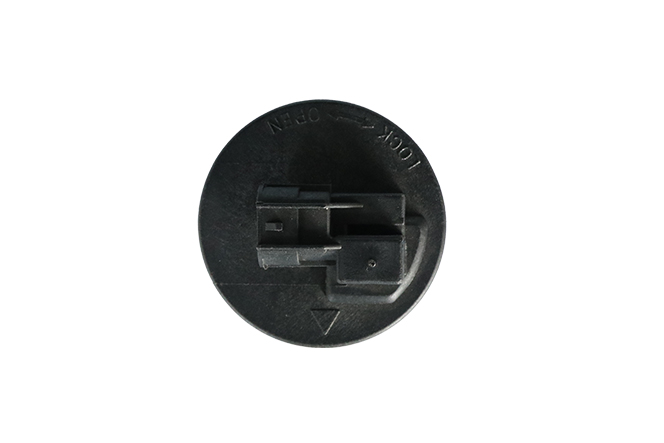

Consumer electrical appliances	Power tool housings, switches and sockets, gears with bearings, and other household appliance parts that require inserts.

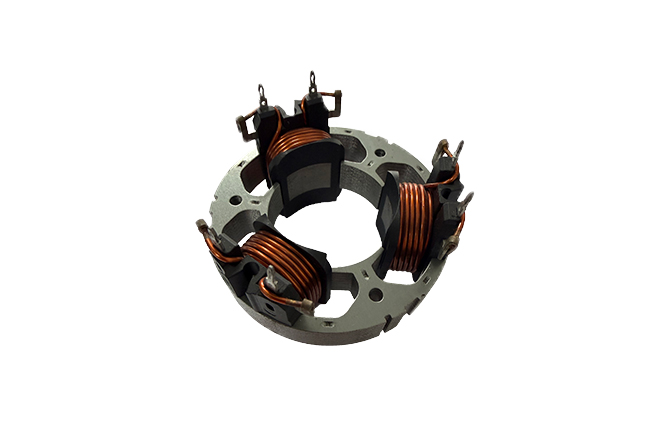

Industrial and automation	Industrial connectors, relays, industrial sensors, motor components and precision accessories for automation equipment.
