Name: Vertical horizontal injection molding machine
Rating: 5 (99 reviews)

Vertical horizontal injection molding machine

Introduction:

The Vertical horizontal injection molding machine is a specialized machine that combines a vertical clamping unit with a horizontal injection unit. Combining the advantages of these two distinct configurations, it can address specific molding requirements that are difficult to address with traditional injection molding machines. High-precision molding addresses the molding challenges of complex products while ensuring consistent product quality. By streamlining the process, reducing manual intervention, and significantly improving production efficiency, our dedicated team will tailor an appropriate solution for your specific needs.

Purging Injection Molding Machine: The Complete Guide to Clean Changeovers 2026-Aug-21
Purging an injection molding machine is the difference between a 25-minute color change and a three-hour production loss. A properly executed purge pushes old resin, carbonized deposits, and pigment residue out of the barrel, screw, and nozzle so the next material starts clean. A rushed purge leaves contamination beh...
How Does an Injection Molding Machine Work? A Complete Guide to the Process 2026-Aug-14
How an Injection Molding Machine Works at a Glance An injection molding machine works by feeding plastic granules into a heated barrel, melting them into a viscous liquid, injecting the melt under high pressure into a closed mold, cooling it until the part solidifies, and then ejecting the finished piece. This cycle ...
Injection Molding Machine Cutaway: Vertical vs Horizontal Structure Guide 2026-Aug-07
Slice an injection molding machine down the middle, and the cutaway view shows exactly how polymer pellets become finished parts: where the screw melts and injects material, how the mold is held shut under tonnage, and how the part is ejected after cooling. For engineers, purchasing teams, and maintenance staff, that ...

Vertical clamping, horizontal injection	Combining the compactness of a vertical machine and the large injection volume of a horizontal machine, a single machine can complete complex processes and improve production efficiency.
Highly customizable	Different clamping forces and injection mechanisms can be freely matched according to customer product requirements to ensure that equipment performance is perfectly matched with product technology and avoid functional redundancy.
Ultra-low base	The design lowers the operating table to an extremely low level, making it easier for operators to place or remove inserts, reducing labor intensity and improving work efficiency and safety.
Widely applicable	It is specially designed for special products that are difficult to process with traditional injection molding machines, such as automotive glass edging, water pipe joints with threaded sleeves, etc., to ensure product molding quality and precision.
Space-saving	The vertical structure effectively utilizes vertical space. Compared with horizontal models, it occupies a smaller area at the same production capacity, making it an ideal choice for factories with limited space.

Main application areas	Typical application scenarios
Automotive industry	Automobile glass edging, automobile interior parts, water pipe joints with threaded sleeves, sensor housings, door handle inserts
Home appliance industry	Internal and external screw connectors of home appliances, control panels with inserts, handles, and precision functional parts
Plumbing and plumbing	Faucet handles, valve components, shower head connections, pipe joints with metal inserts

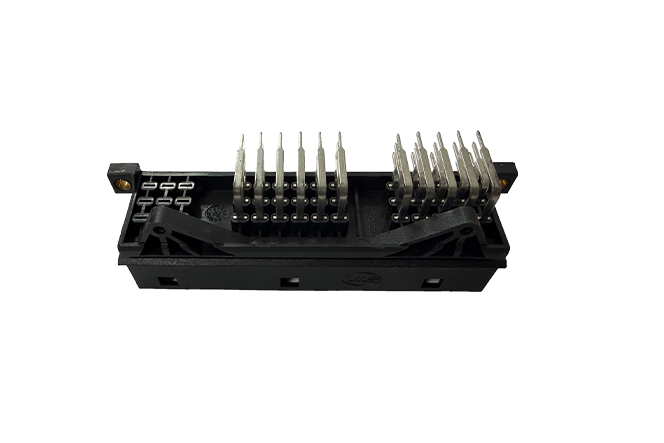

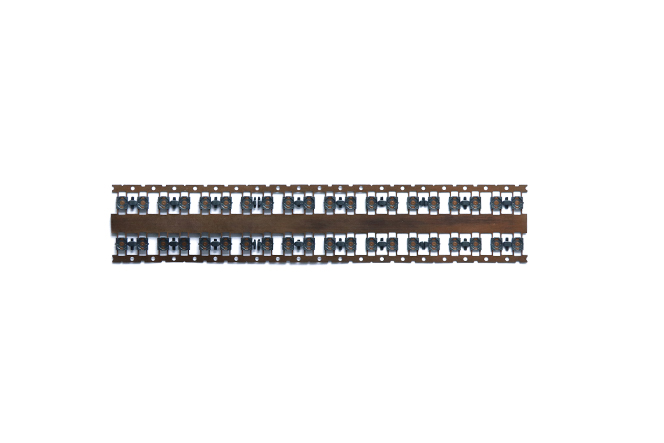

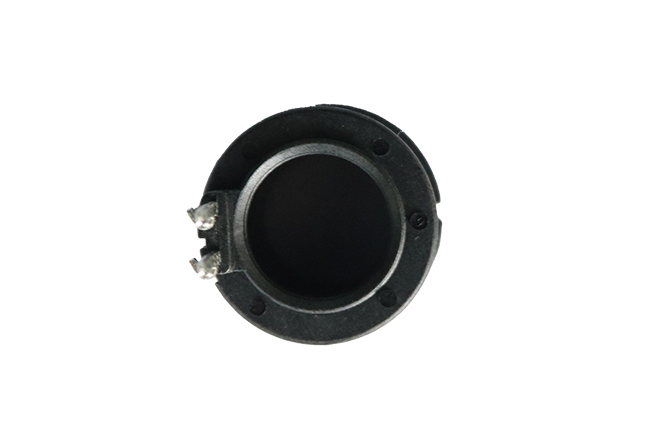

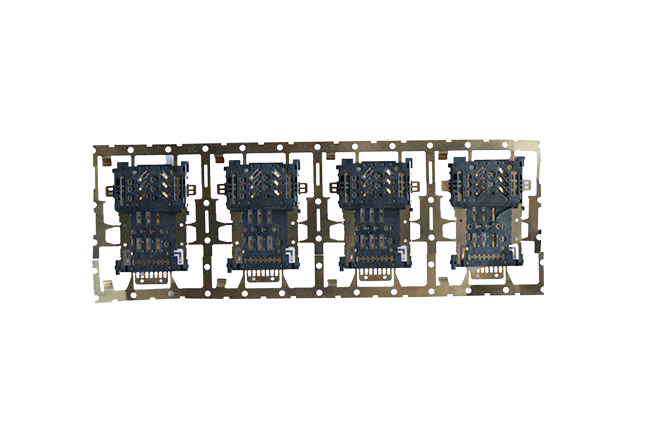

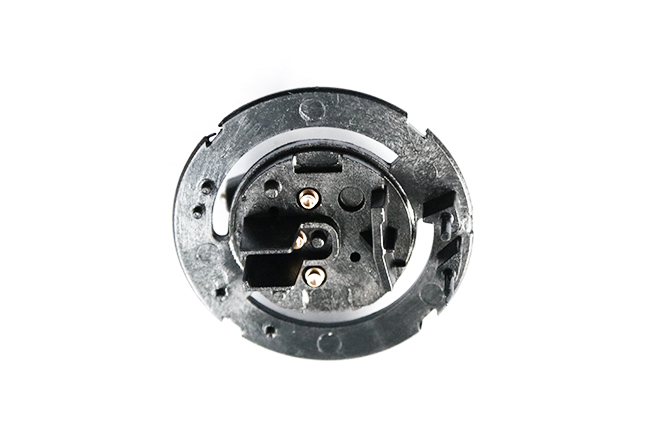

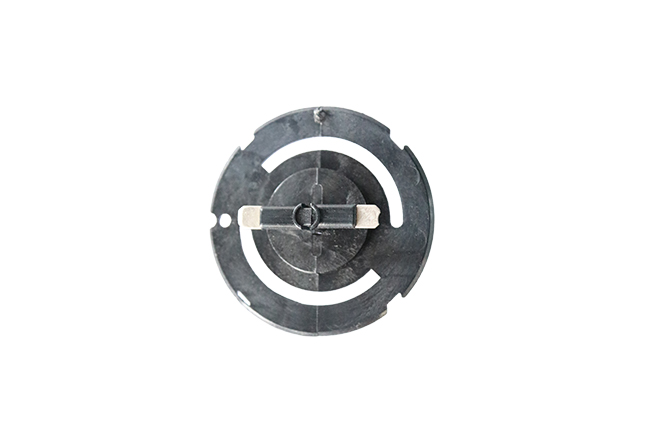

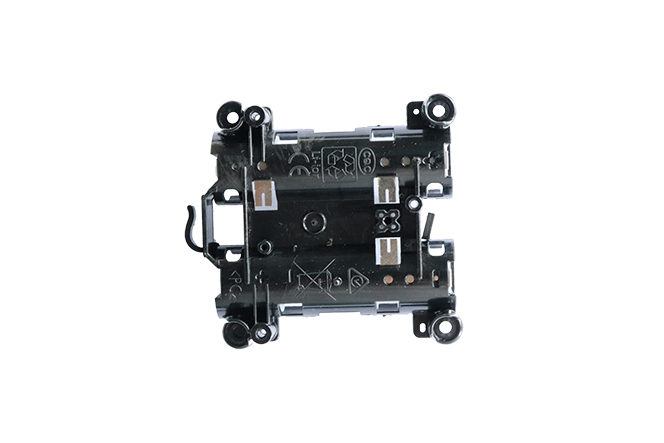

Electronics and communications	Precision electronic connectors, cable plugs, housings with metal terminals, sensor components
Medical devices	Medical equipment components with threaded interfaces, instrument handles with inserts, and connectors
Industrial automation	Transmission parts with metal inserts for automation equipment, industrial robot wrist parts, and sensor housings
